Galvanized Channel Steel
Classification :
PRODUCT DETAILS
Product Description
Hot-dip galvanized channel steel is also called hot-dip galvanized channel steel and hot-dip galvanized channel steel. It is an effective metal anti-corrosion method and is mainly used in metal structural facilities in various industries. It is to immerse the channel steel after derusting in the molten zinc of about 440~460 ℃, so that the zinc layer is attached to the surface of the channel steel, thus achieving the purpose of anti-corrosion. Now the main method of galvanizing the surface of the channel steel is hot dip galvanizing.
Product Parameters
|
Material |
A36,St37,S235J0,S235J2,St52,16mn,S355JOQ195,Q215,Q235B,Q345B,S235JR,S355JR,S355,SS440,SM400A,SM400BA572,GR50,GR60,SS540 |
|
Scope of production |
50*37*4.5-400*104*14.5,75*40*3.8*7-152*76*6.4*9, 140*60*7*10-200*75*8.5*11.5 |
|
Length |
6m, 9m, 12mor according to customer requirements |
|
Technology |
Hot rolled, welded |
|
Standard |
ASTM,AISI,JIS,GB, DIN,EN |
|
Surface |
Galvanized, painted;or according to your requirements |
|
supply capacity |
2000tons/Day |
|
Business Type |
Manufacturer |
|
Certificate |
ISO, SGS,BV |
|
Application |
Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc. |
|
loading port |
Any port in China |
|
Packaging |
Standard export packing or as your request |
|
Payment Method |
Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal. |
|

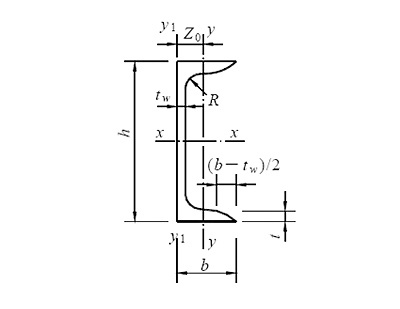

符号： 同普通工字钢 但 Wy 为对应翼缘肢尖 |
|
长度： 型号 5～8，长 5～12m； 型号 10～18，长 5～19m； 型号 20～20，长 6～19m。 |
||||||||||||||
|
|
尺 寸（mm） |
截面 面积 (cm2) |
理论 重量 (kg/m) |
x-x 轴 |
y-y 轴 |
y-y1 轴 |
Z0 |
|||||||||
|
h |
b |
tw |
t |
R |
Ix |
Wx |
ix |
Iy |
Wy |
Iy |
Iy1 |
|||||
|
(cm4) |
(cm3) |
(cm) |
(cm4) |
(cm3) |
(cm) |
(cm4) |
(cm) |
|||||||||
|
5 |
50 |
37 |
4.5 |
7 |
7 |
6.92 |
5.44 |
26 |
10.4 |
1.94 |
8.3 |
3.5 |
1.1 |
20.9 |
1.35 |
|
|
6.3 |
63 |
40 |
4.8 |
7.5 |
7.5 |
8.45 |
6.63 |
51 |
16.3 |
2.46 |
11.9 |
4.6 |
1.19 |
28.3 |
1.39 |
|
|
8 |
80 |
43 |
5 |
8 |
8 |
10.24 |
8.04 |
101 |
25.3 |
3.14 |
16.6 |
5.8 |
1.27 |
37.4 |
1.42 |
|
|
10 |
100 |
48 |
5.3 |
8.5 |
8.5 |
12.74 |
10 |
198 |
39.7 |
3.94 |
25.6 |
7.8 |
1.42 |
54.9 |
1.52 |
|
|
12.6 |
126 |
53 |
5.5 |
9 |
9 |
15.69 |
12.31 |
389 |
61.7 |
4.98 |
38 |
10.3 |
1.56 |
77.8 |
1.59 |
|
|
14 |
a |
140 |
58 |
6 |
9.5 |
9.5 |
18.51 |
14.53 |
564 |
80.5 |
5.52 |
53.2 |
13 |
1.7 |
107.2 |
1.71 |
|
b |
60 |
8 |
9.5 |
9.5 |
21.31 |
16.73 |
609 |
87.1 |
5.35 |
61.2 |
14.1 |
1.69 |
120.6 |
1.67 |
||
|
16 |
a |
160 |
63 |
6.5 |
10 |
10 |
21.95 |
17.23 |
866 |
108.3 |
6.28 |
73.4 |
16.3 |
1.83 |
144.1 |
1.79 |
|
b |
65 |
8.5 |
10 |
10 |
25.15 |
19.75 |
935 |
116.8 |
6.1 |
83.4 |
17.6 |
1.82 |
160.8 |
1.75 |
||
|
18 |
a |
180 |
68 |
7 |
10.5 |
10.5 |
25.69 |
20.17 |
1273 |
141.4 |
7.04 |
98.6 |
20 |
1.96 |
189.7 |
1.88 |
|
b |
70 |
9 |
10.5 |
10.5 |
29.29 |
22.99 |
1370 |
152.2 |
6.84 |
111 |
21.5 |
1.95 |
210.1 |
1.84 |
||
|
20 |
a |
200 |
73 |
7 |
11 |
11 |
28.83 |
22.63 |
1780 |
178 |
7.86 |
128 |
24.2 |
2.11 |
244 |
2.01 |
|
b |
75 |
9 |
11 |
11 |
32.83 |
25.77 |
1914 |
191.4 |
7.64 |
143.6 |
25.9 |
2.09 |
268.4 |
1.95 |
||
|
|
a |
220 |
77 |
7 |
11.5 |
11.5 |
31.84 |
24.99 |
2394 |
217.6 |
8.67 |
157.8 |
28.2 |
2.23 |
298.2 |
2.1 |
|
b |
79 |
9 |
11.5 |
11.5 |
36.24 |
28.45 |
2571 |
233.8 |
8.42 |
176.5 |
30.1 |
2.21 |
326.3 |
2.03 |
||
|
25
|
a |
250 |
78 |
7 |
12 |
12 |
34.91 |
27.4 |
3359 |
268.7 |
9.81 |
175.9 |
30.7 |
2.24 |
324.8 |
2.07 |
|
b |
80 |
9 |
12 |
12 |
39.91 |
31.33 |
3619 |
289.6 |
9.52 |
196.4 |
32.7 |
2.22 |
355.1 |
1.99 |
||
|
c |
82 |
11 |
12 |
12 |
44.91 |
35.25 |
3880 |
310.4 |
9.3 |
215.9 |
34.6 |
2.19 |
388.6 |
1.96 |
||
|
28
|
a |
280 |
82 |
7.5 |
12.5 |
12.5 |
40.02 |
31.42 |
4753 |
339.5 |
10.9 |
217.9 |
35.7 |
2.33 |
393.3 |
2.09 |
|
b |
84 |
9.5 |
12.5 |
12.5 |
45.62 |
35.81 |
5118 |
365.6 |
10.59 |
241.5 |
37.9 |
2.3 |
428.5 |
2.02 |
||
|
c |
86 |
11.5 |
12.5 |
12.5 |
51.22 |
40.21 |
5484 |
391.7 |
10.35 |
264.1 |
40 |
2.27 |
467.3 |
1.99 |
||
|
32 |
a |
320 |
88 |
8 |
14 |
14 |
48.5 |
38.07 |
7511 |
469.4 |
12.44 |
304.7 |
46.4 |
2.51 |
547.5 |
2.24 |
|
b |
90 |
10 |
14 |
14 |
54.9 |
43.1 |
8057 |
503.5 |
12.11 |
335.6 |
49.1 |
2.47 |
592.9 |
2.16 |
||
|
c |
92 |
12 |
14 |
14 |
61.3 |
48.12 |
8603 |
537.7 |
11.85 |
365 |
51.6 |
2.44 |
642.7 |
2.13 |
||
|
36 |
a |
360 |
96 |
9 |
16 |
16 |
60.89 |
47.8 |
11874 |
659.7 |
13.96 |
455 |
63.6 |
2.73 |
818.5 |
2.44 |
|
b |
98 |
11 |
16 |
16 |
68.09 |
53.45 |
12652 |
702.9 |
13.63 |
496.7 |
66.9 |
2.7 |
880.5 |
2.37 |
||
|
c |
100 |
13 |
16 |
16 |
75.29 |
59.1 |
13429 |
746.1 |
13.36 |
536.6 |
70 |
2.67 |
948 |
2.34 |
||
|
40 |
a |
400 |
100 |
10.5 |
18 |
18 |
75.04 |
58.91 |
17578 |
878.9 |
15.3 |
592 |
78.8 |
2.81 |
1057.9 |
2.49 |
|
b |
102 |
12.5 |
18 |
18 |
83.04 |
65.19 |
18644 |
932.2 |
14.98 |
640.6 |
82.6 |
2.78 |
1135.8 |
2.44 |
||
|
c |
104 |
14.5 |
18 |
18 |
91.04 |
71.47 |
19711 |
985.6 |
14.71 |
687.8 |
86.2 |
2.75 |
1220.3 |
2.42 |
||
Factory Appearance
Wugang has scale advantages, resource advantages, integration advantages, technology research and development advantages, capital operation advantages, and has a complete pre-sales, sales and after-sales service system. Positioned to produce and develop high-end wide and thick plates, we continue to innovate and seek transformation, and are willing to provide global customers with other hot-rolled plates, medium-thick plates, wire rods, cold-rolled plates, galvanized plates, stainless steel and other steel products.
Packing and shipping
We can provide
wooden pallet packaging,
Wooden packing,
Steel strapping packaging,
Plastic packaging and other packaging methods.
We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.
We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation.
Application Areas
Steel has the advantages of high strength, wear resistance, corrosion resistance, etc., so it is widely used in various fields. With the advancement of science and technology and the continuous improvement of steel, it is expected that the application fields of steel will continue to expand.
